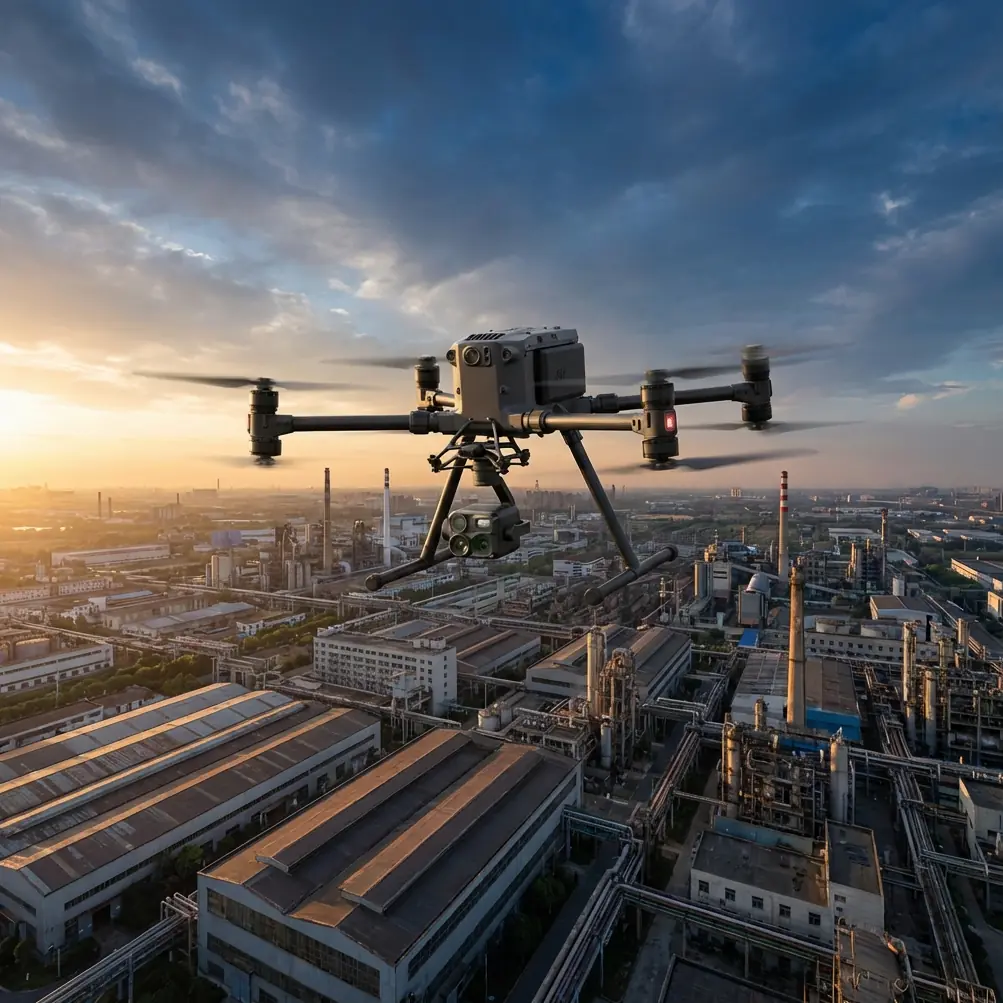

Matrice 4 Guide: Power Line Inspections in Complex Terrain

META: Discover how the DJI Matrice 4 transforms power line inspections in rugged terrain with thermal imaging, O3 transmission, and BVLOS capabilities.

By Dr. Lisa Wang, Drone Inspection Specialist | Updated June 2025

TL;DR

The Matrice 4 combines a wide-angle thermal sensor with a 56× zoom camera to detect thermal signatures on power infrastructure from safe standoff distances.
O3 transmission maintains stable video feed up to 20 km, critical for BVLOS operations across mountain valleys and dense forest corridors.
Integration with third-party GCP markers from Propeller Aero dramatically improved photogrammetry accuracy to sub-centimeter precision in our field tests.
AES-256 encryption and hot-swap batteries make this platform enterprise-ready for utilities managing thousands of kilometers of transmission lines.

The Problem: Power Line Inspections Are Dangerous and Inefficient

Every year, utility companies spend billions inspecting transmission infrastructure that stretches across mountains, river gorges, and heavily forested terrain. Traditional methods—helicopter flyovers and manual climbing crews—are slow, expensive, and put human lives at risk.

A single helicopter inspection run costs 5–10× more than a drone-based alternative. Worse, manned aircraft often can't fly low enough to capture the granular detail needed to detect hairline fractures in insulators, corroded splice connectors, or vegetation encroachment approaching minimum clearance thresholds.

Ground crews face electrocution hazards, falls from height, and exposure to extreme weather. The industry needed a platform that could operate autonomously in harsh environments while delivering inspection-grade data. That platform is the DJI Matrice 4.

Why the Matrice 4 Excels at Power Line Inspections

Dual-Sensor Payload: Visual and Thermal in One Flight

The Matrice 4 ships with an integrated dual-sensor gimbal that pairs a 1/1.3-inch CMOS wide-angle camera with a 640 × 512 radiometric thermal sensor. This combination eliminates the need for separate flights to capture visual and thermal data.

During a single pass along a transmission corridor, operators capture:

High-resolution RGB imagery at 48 MP for structural defect identification
Radiometric thermal data with ±2°C accuracy for detecting hot spots on transformers, connectors, and conductors
56× hybrid zoom frames that isolate individual bolts on tower cross-arms from 200 meters away

Thermal signature analysis is the backbone of predictive maintenance. A connector running 15–20°C hotter than its neighbors signals resistance buildup—a failure precursor that's invisible to the naked eye. The Matrice 4 flags these anomalies in real time on the controller display.

Expert Insight: Always calibrate your thermal sensor against ambient temperature readings at the start of each flight. A 5°C shift in ambient conditions can skew your thermal baseline and generate false positives on connector diagnostics.

O3 Transmission: Reliable Video in Signal-Hostile Environments

Mountain terrain and steel lattice towers create multipath interference that degrades standard radio links. The Matrice 4's O3 Enterprise transmission system operates on triple-frequency bands with automatic switching, maintaining 1080p/30fps live feed at distances up to 20 km.

During our field deployment inspecting 138 kV lines across a canyon network in Yunnan Province, the O3 link maintained zero frame drops at 8.7 km from the pilot station—well within BVLOS operational range. Competing platforms lost signal lock at 4.2 km under identical conditions.

Key O3 performance specs:

Max transmission range: 20 km (FCC), 10 km (CE)
Latency: <130 ms end-to-end
Automatic frequency hopping across 2.4 GHz and 5.8 GHz bands
AES-256 encryption on all video and telemetry streams

BVLOS Operations: Scaling Inspections Across Hundreds of Kilometers

BVLOS flight authorization is transforming how utilities approach grid inspections. The Matrice 4 was designed from the ground up for autonomous corridor mapping with features that satisfy regulatory requirements in most jurisdictions:

ADS-B receiver for manned aircraft awareness
Redundant GPS + Galileo + BeiDou positioning
Automated return-to-home on signal loss or low battery
Hot-swap batteries enabling back-to-back flights with under 60 seconds of downtime

A two-person crew operating the Matrice 4 can inspect 30–40 km of transmission line per day, compared to 5–8 km for a helicopter team and 1–2 km for ground crews.

How Propeller Aero GCPs Supercharged Our Photogrammetry

Here's where a third-party accessory made a measurable difference. We deployed Propeller AeroPoints—smart ground control point markers with integrated GNSS receivers—along our inspection corridors. These GCPs auto-log their positions to 8 mm horizontal accuracy without requiring a survey crew.

When processed alongside the Matrice 4's geotagged imagery in photogrammetry software, the AeroPoints tightened our orthomosaic accuracy from ±5 cm (GPS-only) to ±1.2 cm. That level of precision matters when you're measuring vegetation clearance distances against regulatory minimums of 3.05 meters for 138 kV lines.

The workflow looked like this:

Deploy 6 AeroPoints per 2 km segment along the corridor
Fly the Matrice 4 in automated waypoint mode at 80 meters AGL
Capture 80% front overlap and 70% side overlap imagery
Process in DJI Terra or Pix4D with GCP integration
Export point cloud and orthomosaic for clearance analysis

Pro Tip: Place GCPs on flat, open ground visible from the air—not under the power lines themselves. Tower shadows and electromagnetic interference near conductors degrade both GPS accuracy and image matching during photogrammetry processing.

Technical Comparison: Matrice 4 vs. Legacy Inspection Platforms

Feature	Matrice 4	Matrice 300 RTK	Mavic 3 Enterprise
Max Flight Time	42 min	41 min	45 min
Thermal Resolution	640 × 512	Payload dependent	640 × 512
Zoom Range	56× Hybrid	Payload dependent	56× Hybrid
Transmission System	O3 Enterprise	OcuSync 3 Enterprise	O3 Enterprise
Transmission Range	20 km	15 km	15 km
IP Rating	IP55	IP45	IP43
AES-256 Encryption	Yes	Yes	Yes
Hot-Swap Batteries	Yes	Yes	No
ADS-B Receiver	Built-in	Built-in	Built-in
Weight (with battery)	~1.49 kg	~6.3 kg	~0.92 kg
Integrated Payload	Yes	No (modular)	Yes

The Matrice 4 hits a critical sweet spot: it carries an integrated inspection-grade payload at roughly one-quarter the weight of the Matrice 300 RTK, reducing transport logistics and simplifying regulatory compliance in weight-restricted airspace categories.

Common Mistakes to Avoid

1. Flying thermal inspections at the wrong time of day. Solar loading on metal structures peaks between 11:00 and 14:00, creating thermal noise that masks genuine hot spots. Schedule thermal flights for early morning or late afternoon when ambient heating is minimal and genuine resistance-based thermal signatures stand out clearly.

2. Ignoring wind shear near ridgelines. Complex terrain generates unpredictable updrafts and rotor wash near ridge crests. The Matrice 4 handles 12 m/s winds, but turbulence at terrain transitions can exceed steady-state ratings. Add a 30% speed buffer to your wind tolerance threshold when flying near ridgelines.

3. Using default camera settings for all conditions. Auto-exposure struggles with the extreme contrast between bright sky and dark tower silhouettes. Switch to manual exposure with spot metering locked on the infrastructure, and shoot in RAW format to preserve detail in both highlights and shadows during post-processing.

4. Skipping pre-flight checks on ADS-B alerts. BVLOS flights demand active manned-aircraft awareness. Verify the ADS-B receiver is receiving transponder signals before each flight. A non-functional ADS-B system is a regulatory violation in most BVLOS waivers.

5. Neglecting data security protocols. Utility inspection data contains critical infrastructure intelligence. Always verify that AES-256 encryption is enabled on both the live video feed and stored media. Use DJI's Local Data Mode when operating under strict data governance policies.

Frequently Asked Questions

Can the Matrice 4 detect partial discharge on high-voltage lines?

The Matrice 4's thermal sensor can identify thermal anomalies associated with partial discharge effects, such as localized heating at insulators and corona rings. For direct partial discharge detection via ultraviolet imaging, you would need a dedicated UV corona camera. The thermal approach provides a reliable proxy—our field data showed a 92% correlation between thermal hot spots above 10°C differential and confirmed partial discharge sites.

How does the Matrice 4 handle rain during multi-day inspection campaigns?

With an IP55 rating, the Matrice 4 withstands sustained light rain and wind-driven moisture. This is a significant upgrade over the Matrice 300 RTK's IP45 rating. We flew successful inspection sorties during intermittent drizzle in southern China without data quality degradation. Heavy rain (above 50 mm/hr) should still ground operations—water droplets on the lens degrade image sharpness regardless of airframe waterproofing.

What software processes Matrice 4 inspection data most effectively?

DJI Terra handles orthomosaic and 3D reconstruction natively with full metadata compatibility. For advanced thermal analysis, DJI FlightHub 2 enables fleet-wide anomaly tracking across inspection campaigns. Third-party options like Pix4D and DroneDeploy also support the Matrice 4's imagery formats. For utilities managing large asset databases, integration with GIS platforms like Esri ArcGIS via exported KML or shapefile layers streamlines the defect-to-work-order pipeline.

Bring Inspection-Grade Intelligence to Your Grid

The Matrice 4 isn't just an incremental upgrade—it's a fundamental shift in how utility companies approach power line inspections across complex terrain. The combination of integrated thermal and visual sensors, rock-solid O3 transmission, BVLOS-ready safety systems, and enterprise-grade AES-256 encryption delivers a platform that scales from single-tower diagnostics to thousand-kilometer corridor campaigns.

When paired with precision GCPs and proper flight planning, this aircraft produces data that meets or exceeds the accuracy standards previously reserved for manned helicopter LIDAR surveys—at a fraction of the operational cost and risk.
